St Joseph's North Sydney Convent Chapel

Also known as Mary MacKillop Memorial Chapel

Mount Street, North Sydney

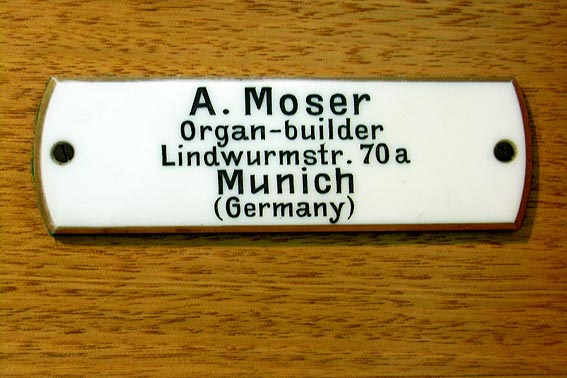

A. Möser (Munich) 1927 (2/14 electro-pneumatic)

Mary MacKillop Memorial Chapel
From SOJ February/March 1987 Kelvin Hastie writes:

The organ in the Convent chapel was built in 1927 by A. Möser of Munich to the design of Dom Stephen Moreno, O.S.B. of the Benedictine Abbey at New Norcia, Western Australia. New Norcia has a larger Möser organ of 1923, one of the most fascinating organs ever exported to Australia due to its almost bizarre tonal design (including mutations at 1-1/7 and 8/9). This style is nonetheless very typical of German organbuilding in the 20th century which employed extremes of sonority according to the 'klangfarbe' style. The North Sydney Möser has a most unusual tonal design, unique in our city, and although electrified c. 1960 by S. T. Noad and Son, retains virtually all of its original characteristics. An overhaul was undertaken in 1982 by J. W. Walker & Sons (Aust) Pty Ltd.

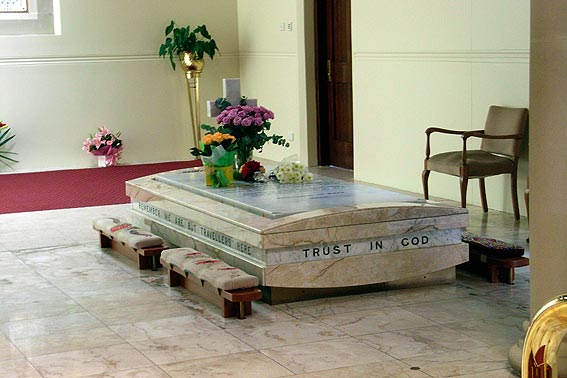

The chapel contains the grave of Sister Mary MacKillop, Australia's first Catholic Saint.

Historical Information:

The historical information below was researched from convent archives and provided by Sr Marie-Therese Levey rsj, May 2011.

  • 1927: Mother Laurence O'Brien, on behalf of the Sisters of St Joseph, requested Dom Stephen Moreno, who was travelling to Munich, to negotiate the sale of the Moser pipe organ. He returned to Australia with the instrument later that year, and under his direction, the organ was assembled. It is something of a "sister instrument" to the one at Dom Moreno's home monastery of New Norcia.

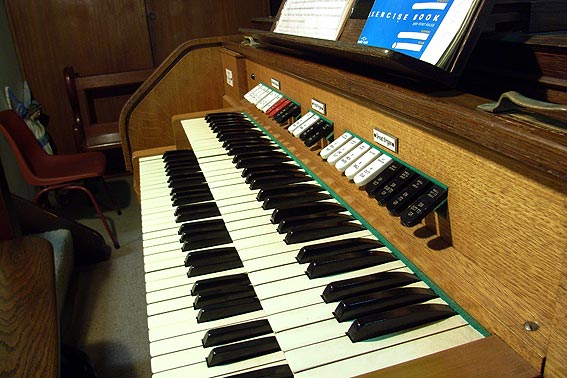

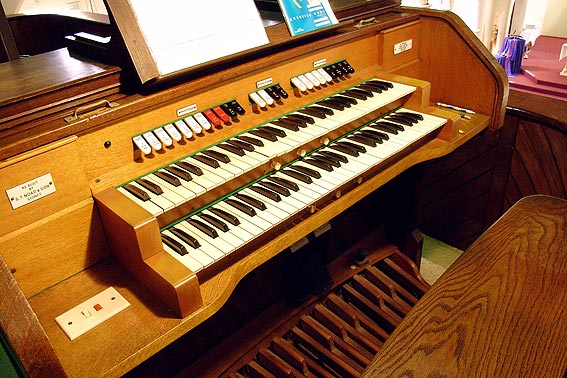

  • 1957: During the time of Mother Leone Ryan, the organ was reconstructed by S.T. Noad & Son. A new blower was installed and the pneumatic action electrified so that the console could then be moved to its present position at the side. The action puffers were replaced by electric magnets. The manual and pedal keyboards were replaced.
  • 1982: During the time of Sr Elizabeth Murphy, Peter Jewkes (working for J.W. Walker & Sons (Aust.) Pty Ltd) was engaged to thoroughly overhaul the instrument. All of the pipes were regulated and repaired. The Unde Maris stop, which has the distinctive feature of undulating against the Concert Flute, was restored, as also was the rare sound of the Harmonia Aetherea.

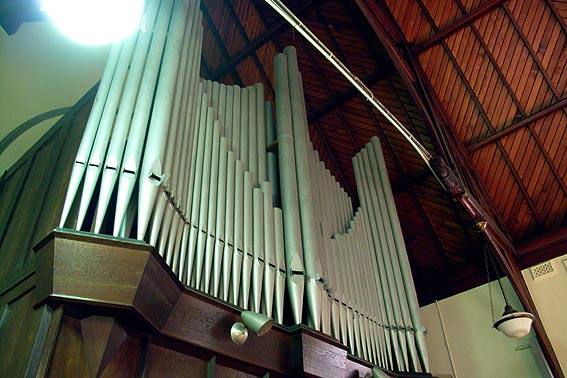

  • 1994: During the time of Sr Mary Cresp, in preparation for the visit of Pope John Paul II and the Beatification of Blessed Mary MacKillop (1995) new German splitskin purses were fitted to operate the 963 pipes. All pipes were taken out, cleaned and reinstalled.
  • 2001: The 1957 blower was replaced by a new, silent, German unit. The Tremulant was repaired.
  • 2010: Canonization of St Mary MacKillop. Organ recitals are a regular feature in the chapel.

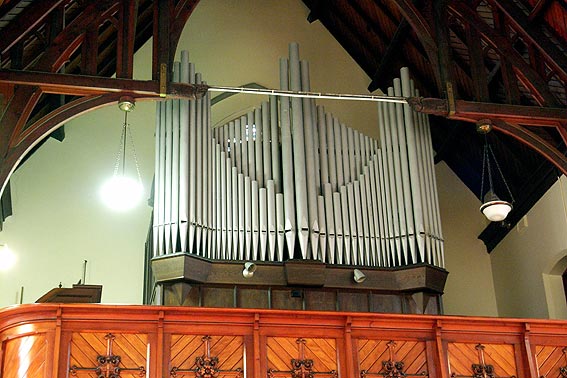

Mary MacKillop Memorial Chapel Interior

Detailed Specification:

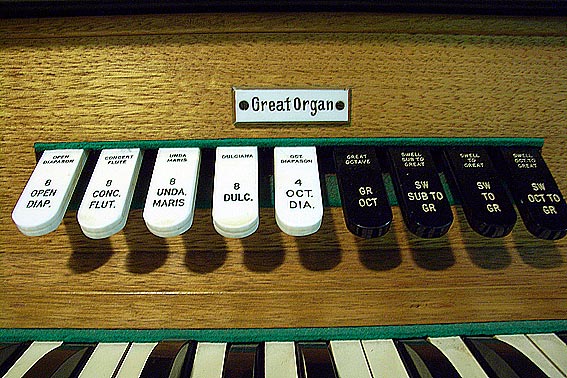

GREAT
8' Open Diapason
8' Concert Flute
8' Dulciana
8' Unda Maris
4' Octave Diapason

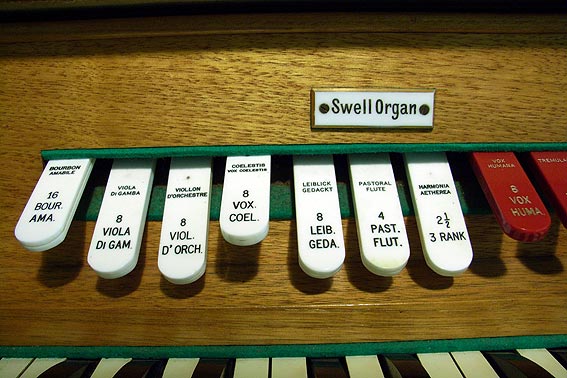

SWELL
16' Bourdon Amabile
8' Lieblich Gedact
8' Viola di Gamba
8' Viollon d'orchestre
8' Vox Coelestis
4' Pastoral Flute
2-2/3' Harmonia Aetheria III
8' Vox Humana
Swell Octave
Swell Sub Octave
Tremulant

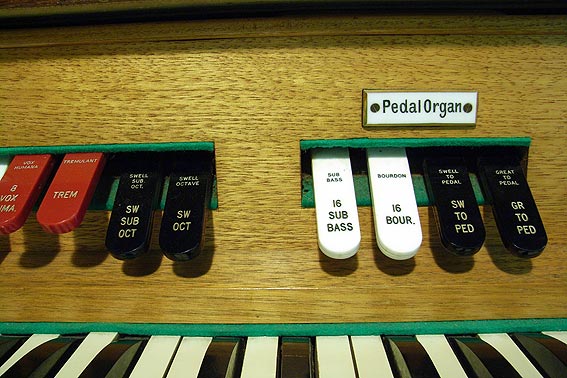

PEDAL
16' Bourdon
16' Sub Bass
COUPLERS
Great Octave
Swell to Great
Superoctave Swell to Great
Suboctave Swell to Great
Great to Pedal
Swell to Pedal
OTHER FEATURES
  • Extra octave of pipes for Swell Stops
  • Vox Humana in a double swell box
PISTONS (original - no longer present)
  • Crescendo for all speaking stops and couplers with scale indicator
  • Handstops off
  • Crescendo off
  • Pianissimo
  • Piano
  • Mezzoforte
  • Full organ
  • All collective combinations off
  • Wind indicator
CURRENT PISTONS (as noted by MQ Mar 2007)
  • 3 fixed pistons to Swell and Great (Pedal is controlled by Great Pistons)

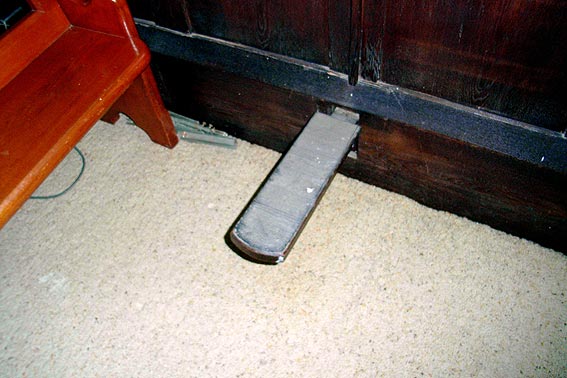

  • Great to Pedal reversible Toe Piston

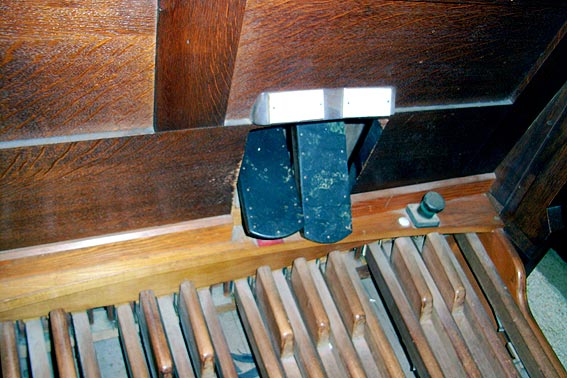

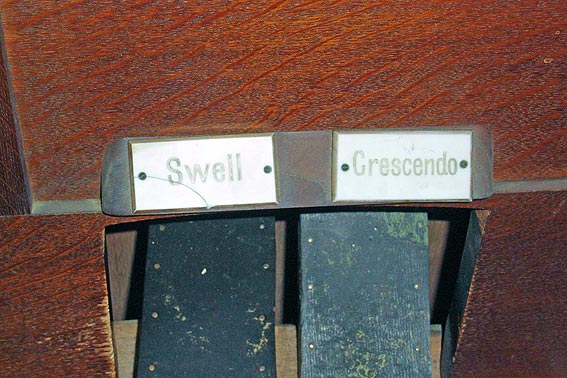

  • Crescendo pedal with green indicator light
