St Giles' Presbyterian Church

cnr McMahon & Park Streets, Hurstville

B. c.1930 Wurlitzer Co., Tonawanda, N.Y. (for Strand Theatre, Hobart?)
Reb. & inst. 1954 in present church Hill, Norman & Beard
(new console & 3 rk mixture supplied) (o/n 14344). 2m., 20 sp.st. (some extension), 5c., el.pn.
Gt: 16.8.8.4.4.2.8. Sw: 8.8.8.4.2-2/3.2.III.8. Ped: 16.8.8.5-1/3.4.

Organ

[Photo: Mark Quarmby (June 2019)]

Organ Organ

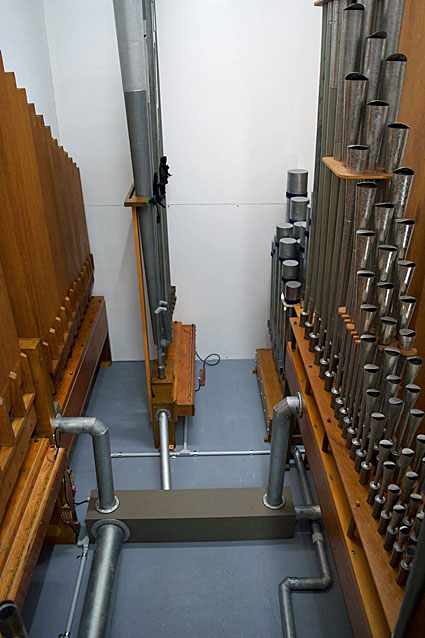

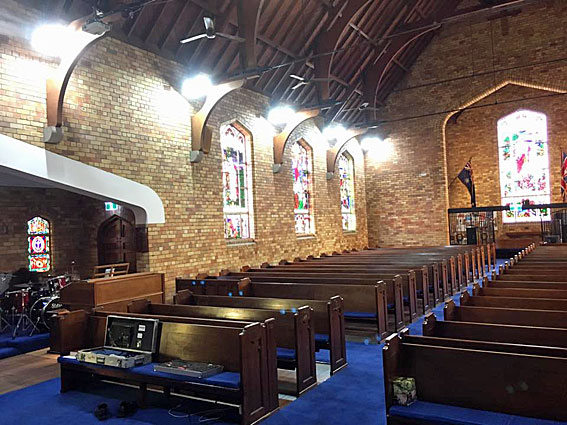

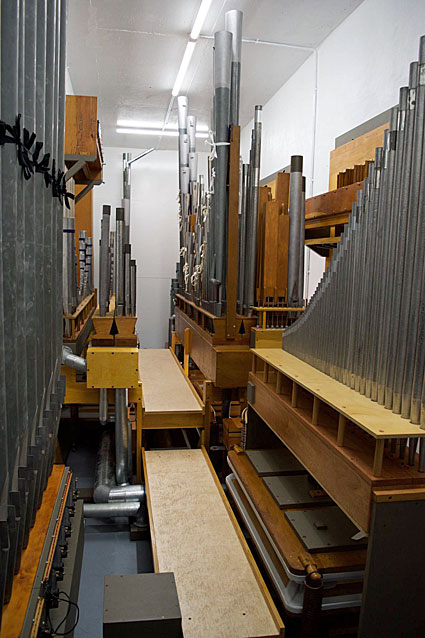

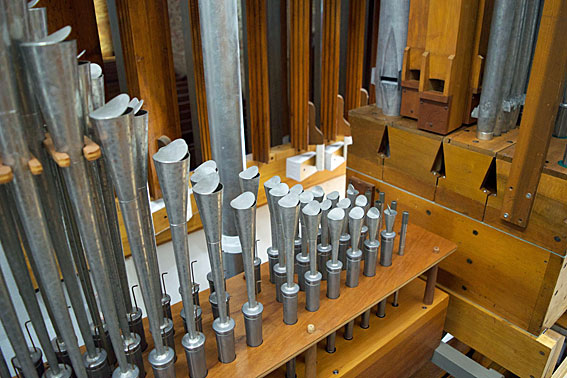

Photos above: Rodney Ford (November 2017)

From The Sydney Organ Journal (Winter 2013):

A Little-known Sydney Wurlitzer

Rod Blackmore

I am grateful to Ron Mapstone, organist at St. Giles' for the contemporary information.

Wurlitzer organ (opus #157) was the third substantive organ of that make to be imported to Australia. There had been a few Wurlitzer "Photoplayer" organs with a couple of pipe ranks, a range of tonal and non-tonal percussions, and roll players (but without pedal boards), as well as similar Robert Morton "Fotoplayers". These were mostly played with their roll players to accompany silent movies. Opus 157, however, with two manuals and a full pedal board, (as well as roll players and percussions), had six pipe ranks: Flute-Bourdon, Flute [Tibia], Salicional, Vox Humana, Trumpet and Viol Celeste. The console had the appearance of a player-piano with a straight stop rail.

The stoplist is:

Great Swell Pedal
16' Contra Viola
8' Open Diapason
8' Flute
8' Gedeckt
4' Octave
4' Flute
2' Super Octave
III Mixture
8' Trumpet
Chimes
Swell to Great
Auto Bass
8' Gedackt
8' Salicional
8' Voix Celeste
4' Nason Flute
4' Salicet
2-2/3' Nazard
2' Piccolo
III Mixture
8' Trumpet
8' Oboe
Chimes
Sub Octave
Octave
Tremulant
32' Contra Diapason
16' Major Bass
16' Bourdon
8' Principal
8' Flute
5-1/3' Quint
4' Octave Flute
Great to Pedal
Swell to Pedal

Compass 61/ 32

Great and Pedal Combinations Coupled

  • 5 divisional Pistons for Swell
  • 5 divisional Pistons for Great
  • 5 divisional Pistons for Pedal
  • 8 General Pistons
  • Next
  • Previous
  • Swell to Great reverser
  • Swell to Pedal reverser
  • Great to Pedal reverser
  • Set
  • General Cancel

20 levels of memory

Organ Organ Organ Organ Organ Organ Organ

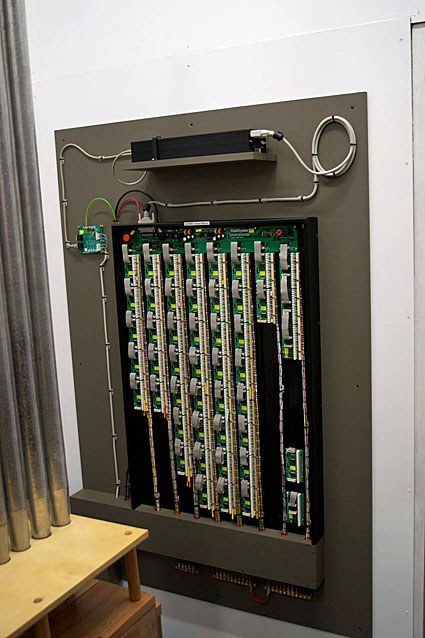

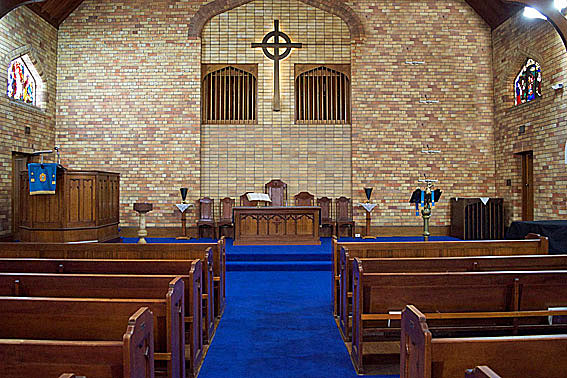

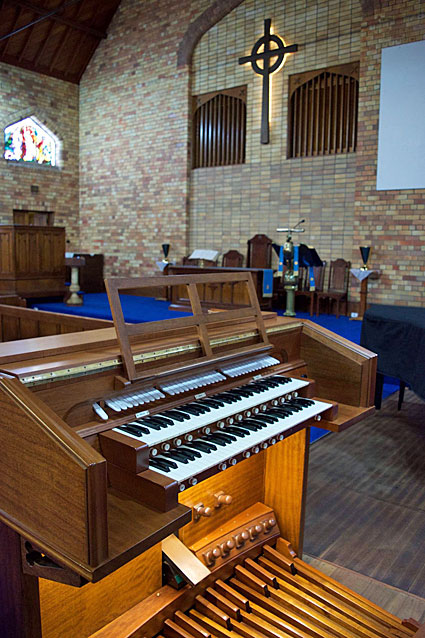

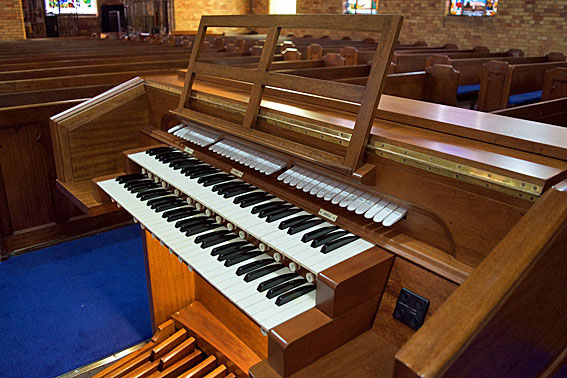

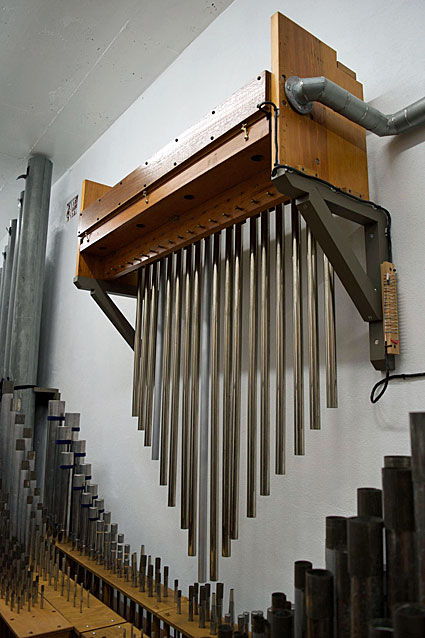

Photos: Rodney Ford (November 2017)

Organ

Photo: Alan Caradus (October 2017)

Organ

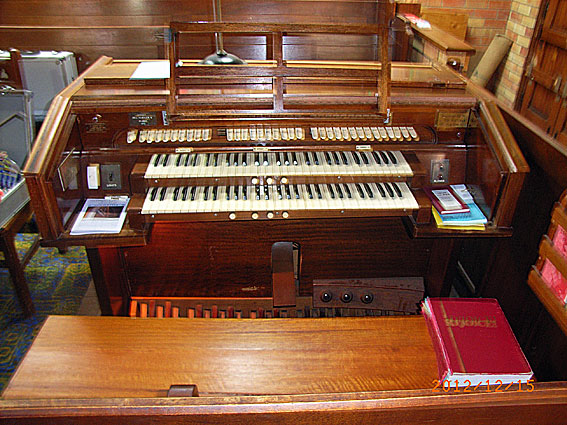

Console before restoration
Photo: Rod Blackmore (2013)
